TSW110
د.إ68.000
TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product – TSW100. Possible to power up through the first LAN port. It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution. It offers a wide range of supported power supply voltages (9-30 V). Ideal for professional high bandwidth applications to provide reliable data connection.
Out of stock
Description
Specifications
ETHERNET
LAN 5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
crossover
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking) 10 Gbps
Packet buffer 128 KB
MAC address table size 2K entries
Connector 4 pin industrial DC power socket
Input voltage range 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Power consumption < 0.4 W/ <1.8 W
(idle/max)
PHYSICAL INTERFACES (PORTS, LEDS)

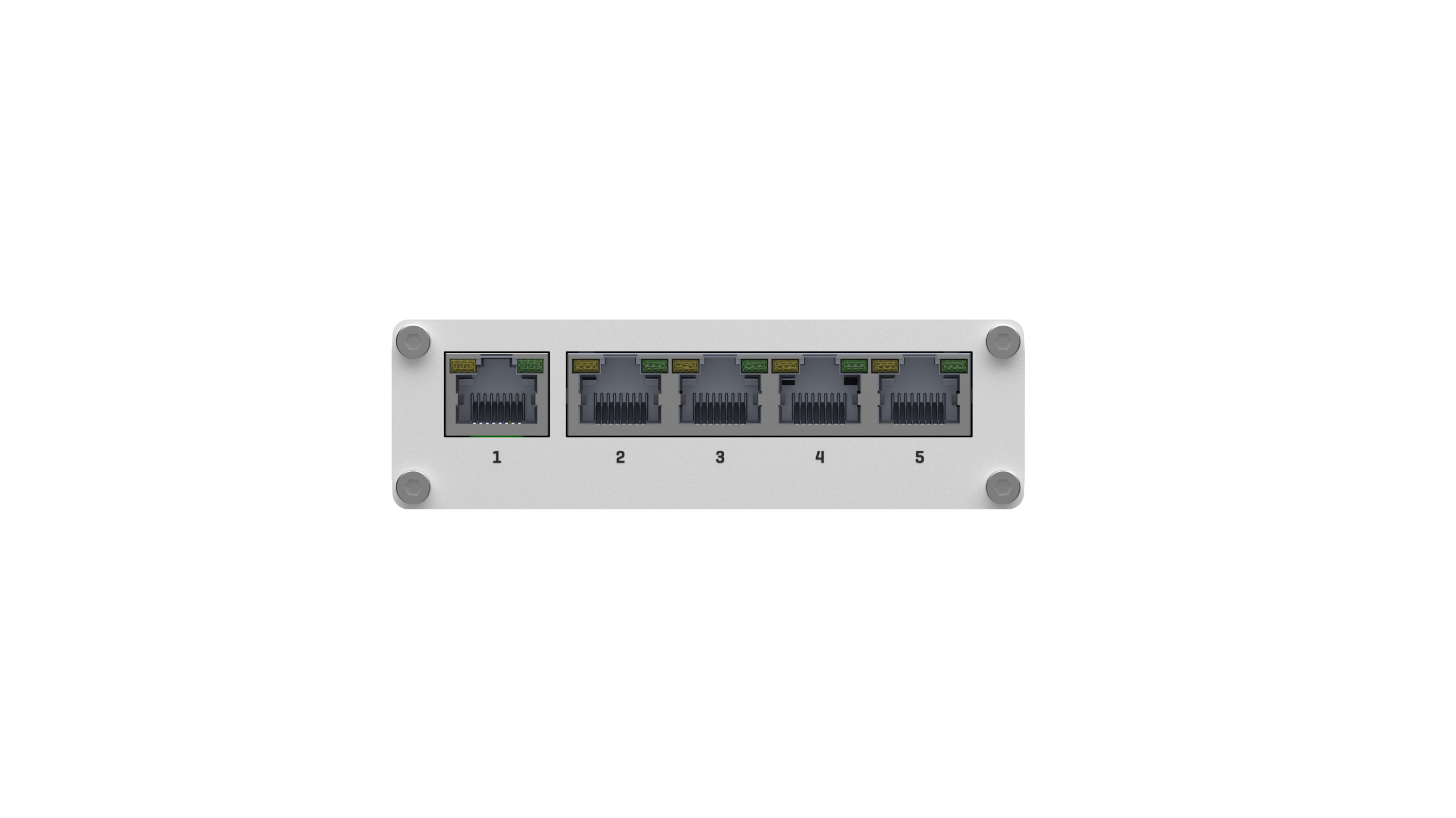

Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
Status LED’s 1 x Power LED, 10 x LAN status LED’s
Power 1 x 4 pin DC connector
Ground 1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material Full aluminum housing
Dimensions (W x H x D) 100 x 30 x 85 mm
Weight 227 g
Mounting DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 °C to +75 °C
Operating humidity 10 % to 90 % non condensing
